1441 Tiki 46 in Phils
|
Reduced to sell $US115,000 Note: "offer may be considered for a quick sale" Austrian built. |
|
-
General +

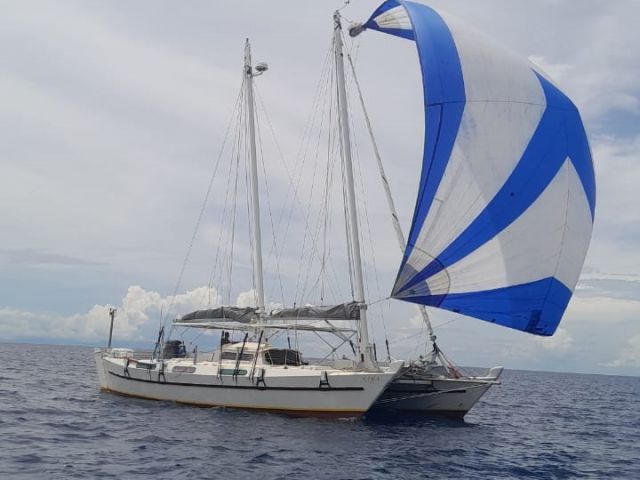

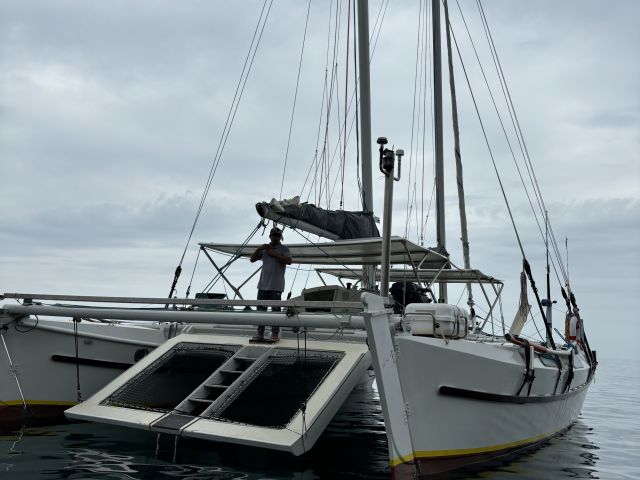

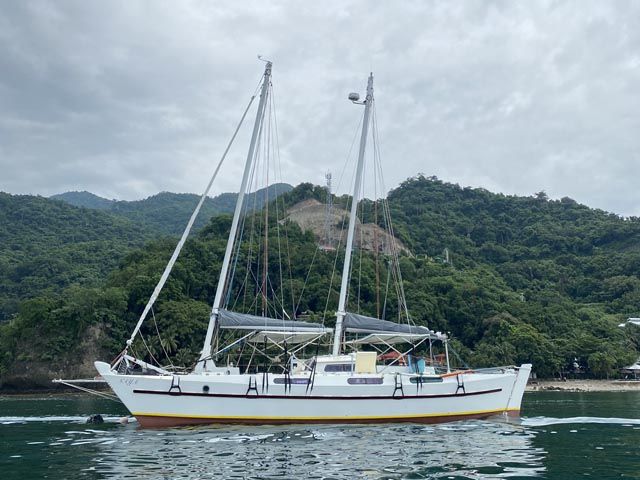

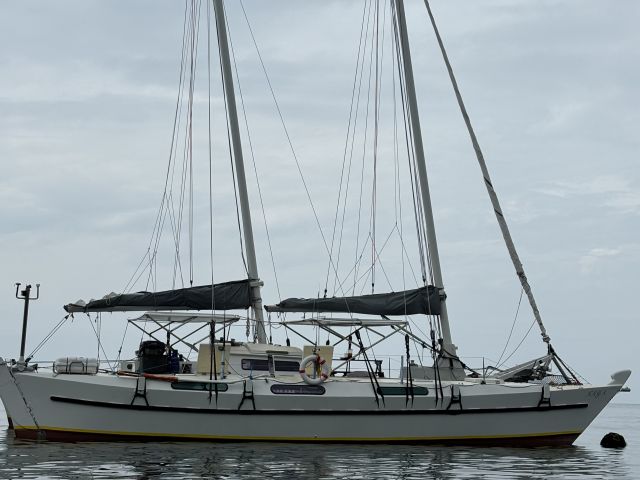

Built in Austria in 2006 and sailed to Thailand in 2009, NAYA is a beautifully built and maintained Wharram Tiki 46.
The yacht has aluminium masts and booms, the latter fitted to improve upwind sailing performance.

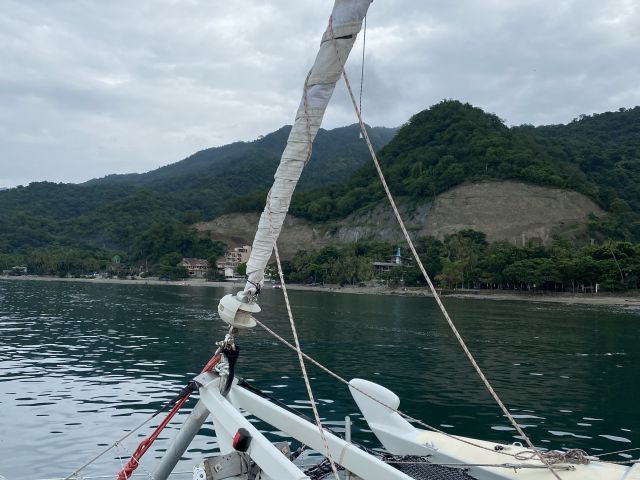

Dyneema rigging. A bowsprit was fitted in 2014 to tack an asymmetric spinnaker, screecher or Code 0.
All instruments replaced in the last 5 years.
New fridge.
Boat has just completed a haul-out and servicing work completed, a full rub down and repaint and new anti-fouling.
Over 200 days of labour. The boat is very clean and fresh. -
Spec +
LOA: 14.10 m 46’
BOA: 7.42 m
Draft: 1.20 m
Displacement: 8.0 ton
Sail area: two mains and 2 jibs: 76.0 m2, plus symmetric and asymmetric spinnakers.
Last dry dock: June 2024. -
Design and Construction +

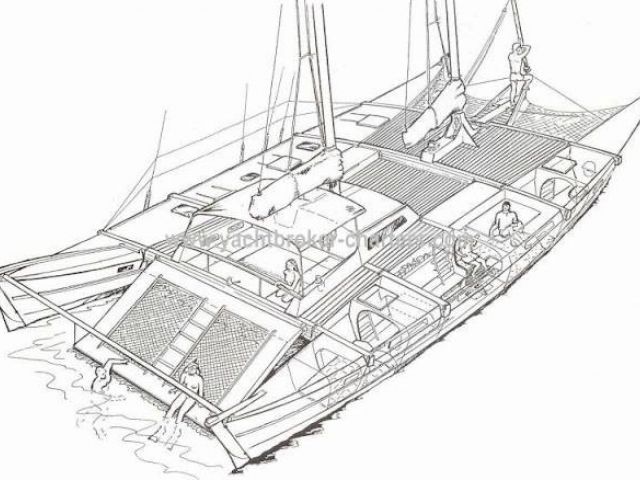

• Built to James Wharram Design specifications
• Meranti Plywood, Epoxy, Fiberglass (300g/m2)
• Decks in composite construction with insulating foam core
• 2 component PU Paint, all deck area with anti-slip

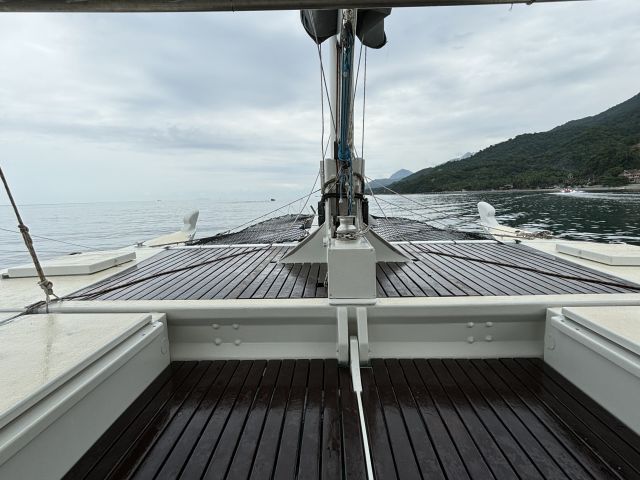

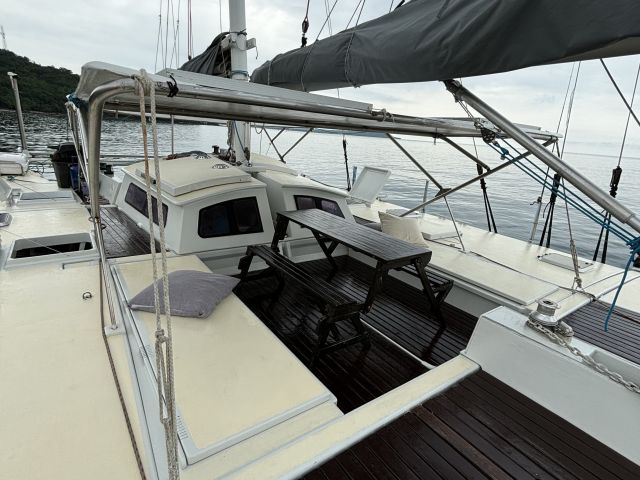

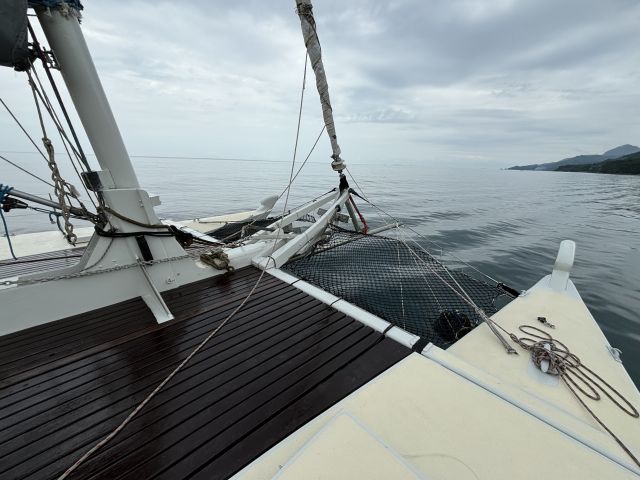

• slatted deck in Banghirai tropical hardwood

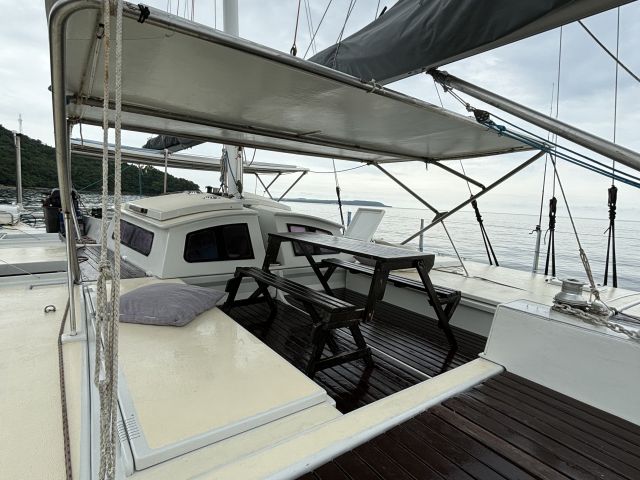

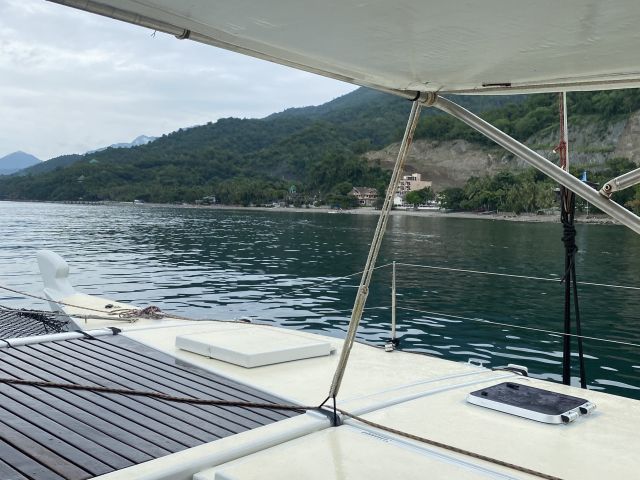

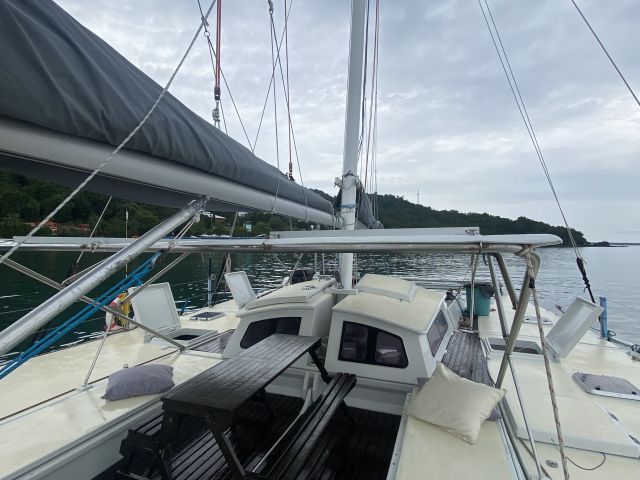

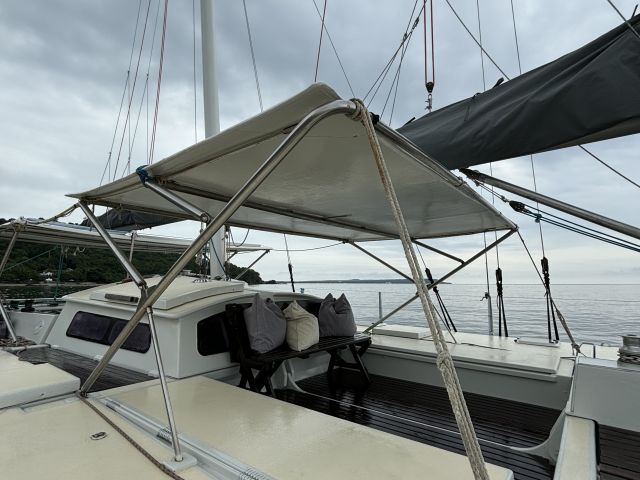

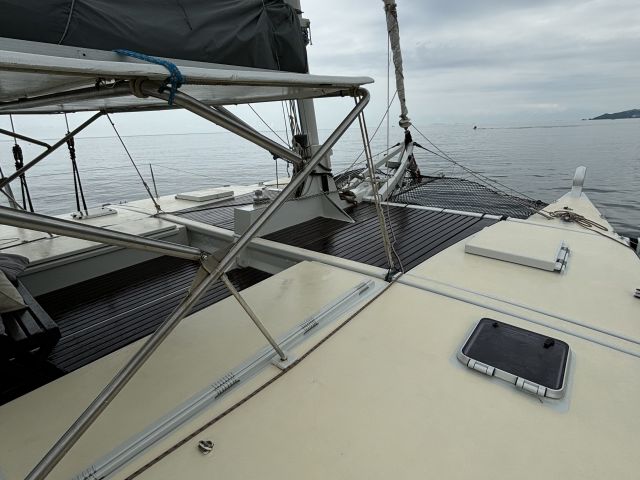

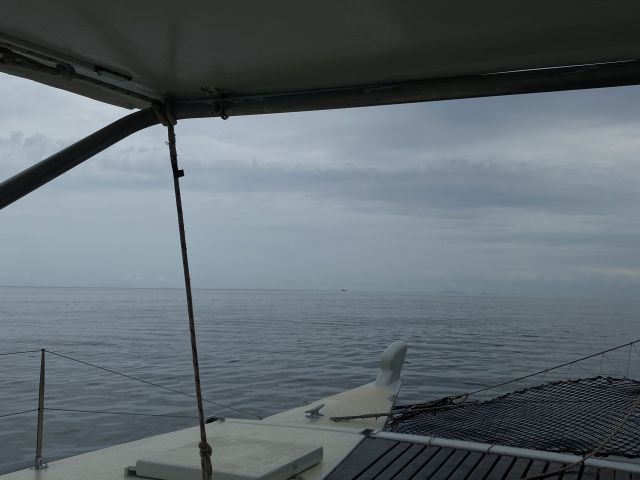

• Two hardtop bimini’s fitted for excellent shade protection -
Accommodation +

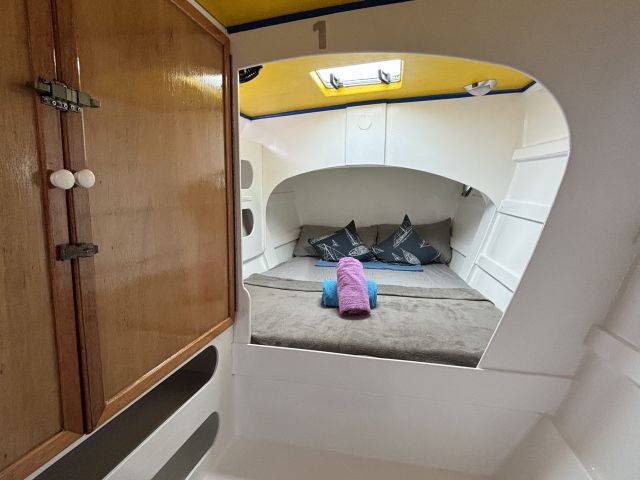

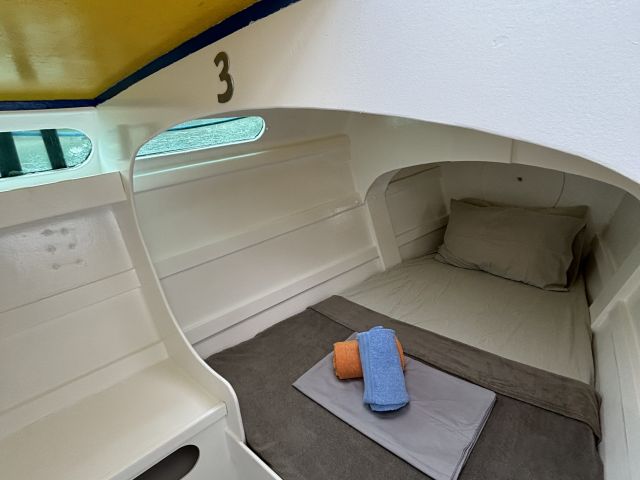

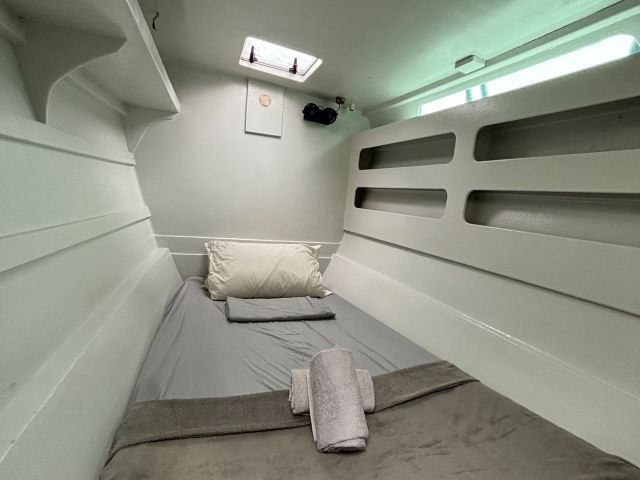

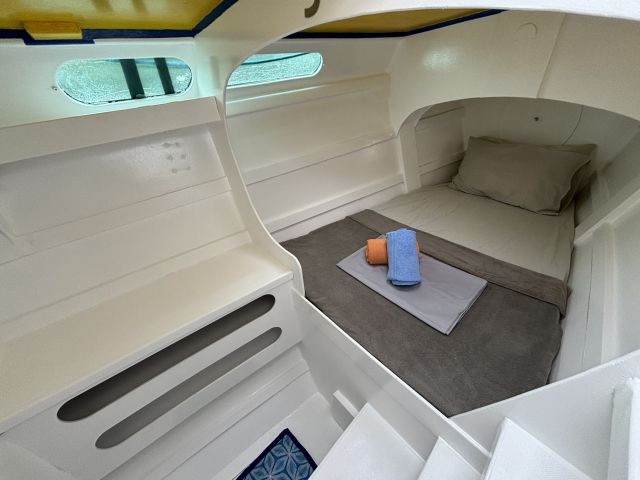

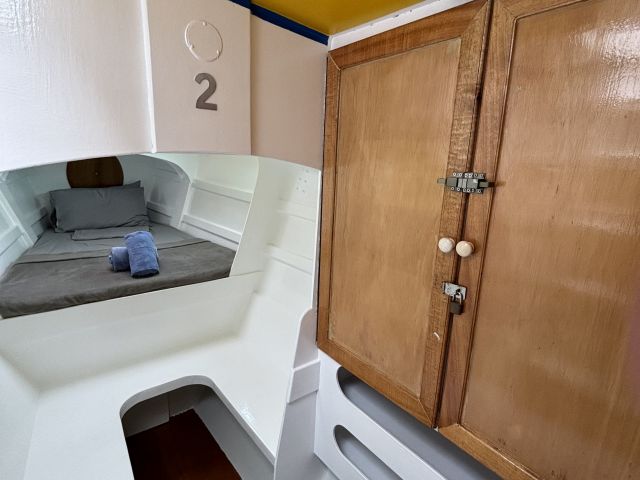

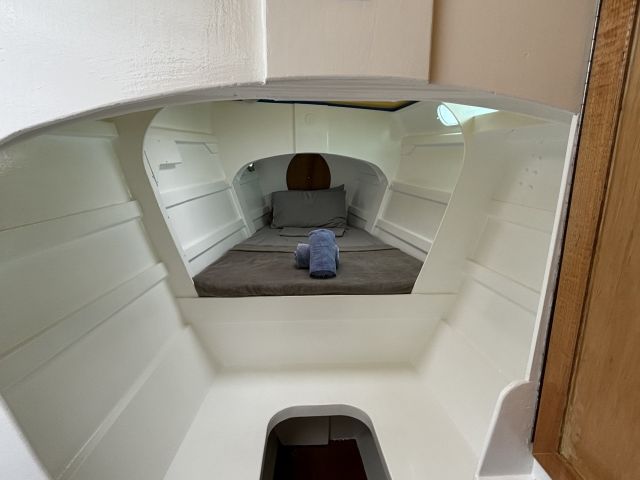

3 double bunks & 1 convertible double bunk in the saloon
each bunk with private entry compartment
ample of stowage space in all bunks (no tanks in the hulls)
6 Gebo deck hatches, 5 port holes & 5 fans for ventilation
1.85m height clearance inside the hulls

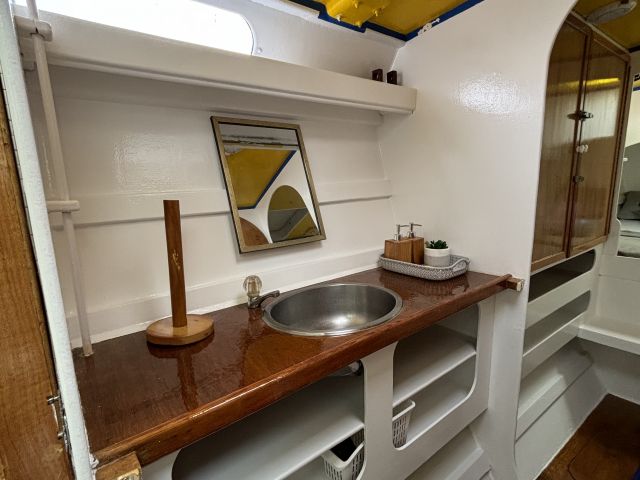

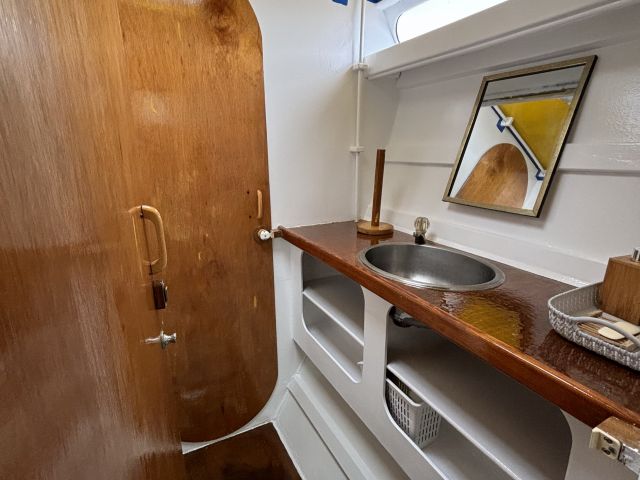

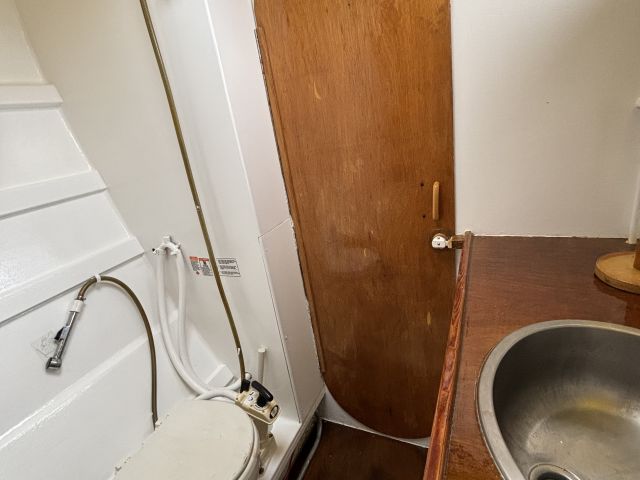

Spacious head with Jabsco electric toilet

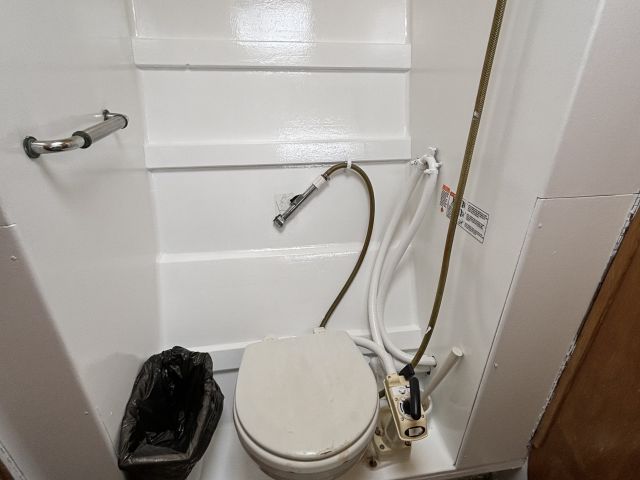

Second head with manual Jabsco toilet

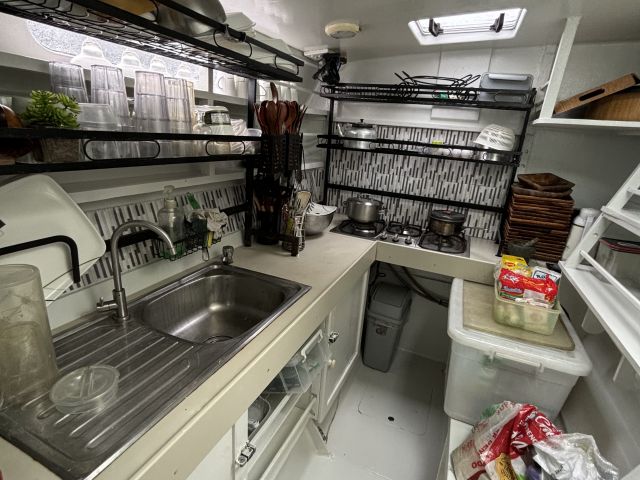

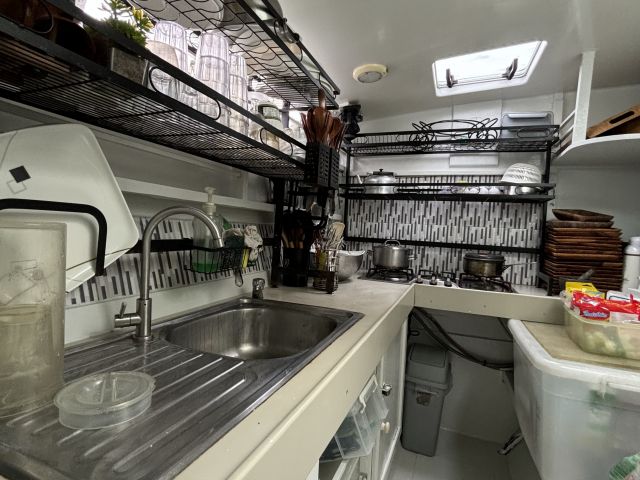

Three burner gas stove
Storage rack for 2 x 14 kg gas tanks
New 12V fridge
Separate compartment for workshop and spare parts

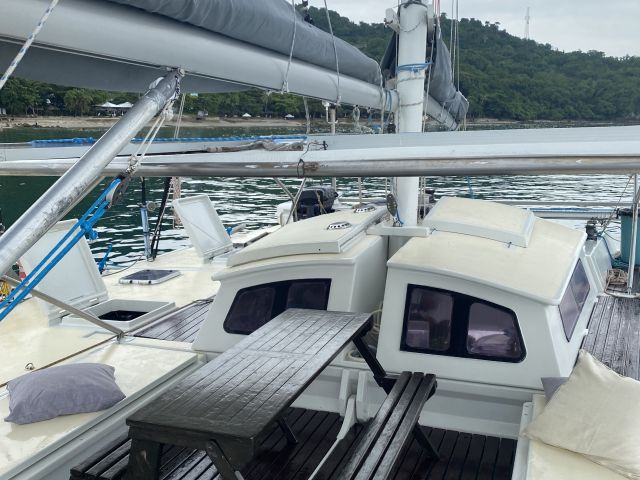

Outdoor furnishings for dining and relaxation on the deck -
Sails and Rig +
Aluminium masts & dyneema rigging
2 Z-spar booms for mizzen and mainsail with boom vang and reefing system for both reefs
Lazy jacks for mizzen & main
Plastimo roller furling for jib
Mizzen & Main 28m2 polyester sails >> brand new in January 2024
2 x Staysail 23m2 polyester (average), plus J3 (excellent) and J4 (new).
Symmetric, tristar spinnaker (blue and white): approx. 80 sq m
Asymmetric spinnaker (red, white and blue): approx. 55 sq m
15 Easylock jammers for all halyards reefing lines, etc.
5 Harken ST winches -
Engine +
Engine: 1 x Kubota V2203EU (50HP), 3500 hours
Drives: 2 x independent switch able hydraulic drives with drive shaft, in the hulls
Propeller: 2 x Bronze 2 blade 16x13” 35% BAR
Cruising speed: 5 to 6 kn
Max. speed: 8 kn
Fuel consumption: 4.5 to 5.0 ltr/hour @ 5 kn
Diesel tanks: 1 x 45 ltr. day tank and 1 x 255 ltr. Storage tank. Electric transfer pump -
Ground Tackle +
40 kg CQR with 100m of 10mm chain
Fortress FX55aAluminium anchor 14kg with 10m of 10mm chain & 100m of 20mm rope
Electric windlass for anchor -
Steering +

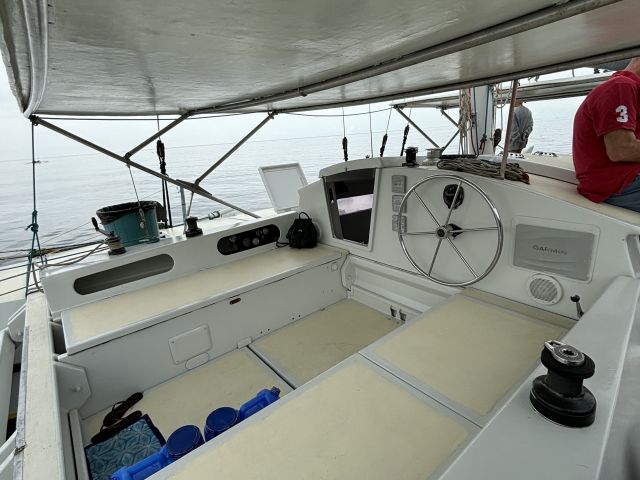

Kobelt hydraulic steering system for commercial vessels with two hydraulic jacks
acting directly to the rudder, synchronized by a tie bar
Emergency tiller for both rudder -
Electronics/Navigation +
Garmin Sail Pack main instrument set
Garmin GMR Fantom 18/24 radar
Garmin Chart plotter GPSMSP7400/7600 series & calibrated auto-pilot
Navman 7100 DSC VHF radio
Steering compass (125mm)
Cignus M85 handheld VHF -
Electrics +
House batteries: 4 x 150Ah; 12V industrial grade, two replaced only last year.
80A alternator with battery controller
1 x Battery charger
Honda 10i generator

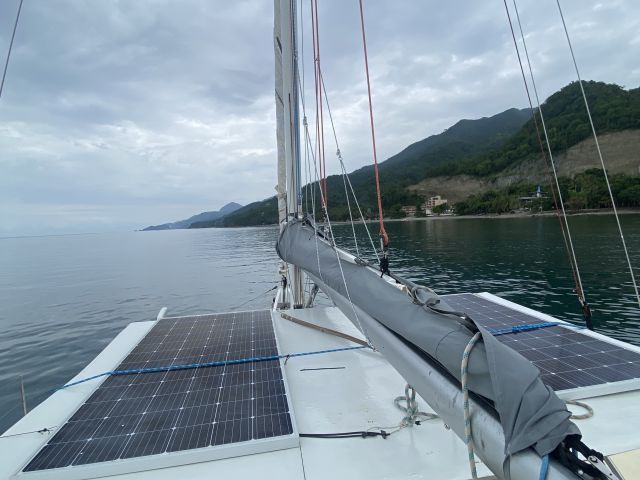

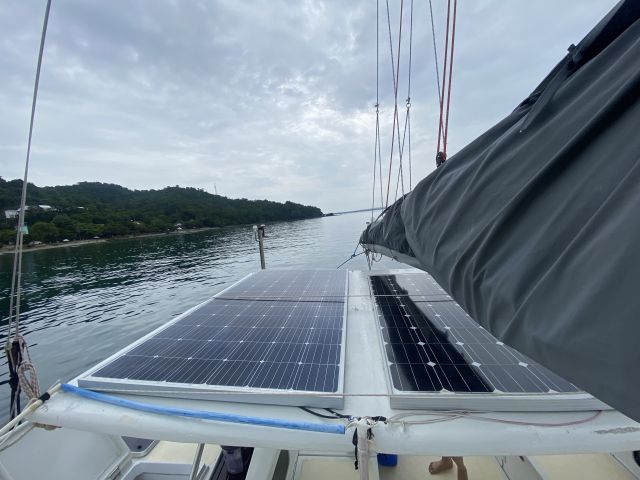

4 x 250 and 1x 65W solar panels with separate regulators
Ampere hour meter
Pure sine wave inverter 750W / 230V

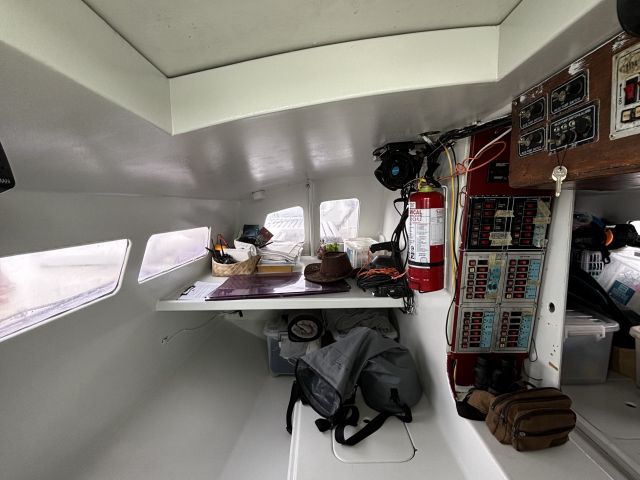

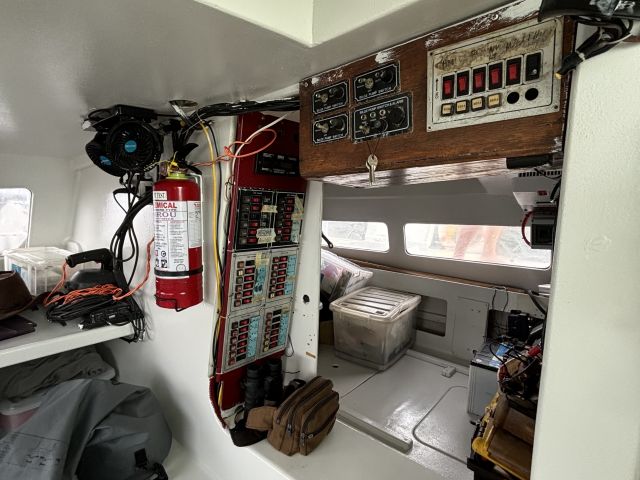

Main switch panel with 36 separate circuits
3 deck lights
All cables are invisible incorporated into the deck foam core
2 to 3 separate lights in each bunk, 4 in galley, 4 in saloon
Bluetooth music box -
Water +
Pressurized freshwater system with:
two 150lit. tanks
1 x160 liter tank
two separate automatic Jabsco pumps -
Safety +
12-person life raft. Last serviced: June 2024
406 Mhz EPIRB
12 life vests
Safety sling, 2 emergency buoys -
Dinghy +
Dinghy 3.10m
5.0 hp Tohatsu 4 stroke. Just serviced. Starts first pull.
