General +

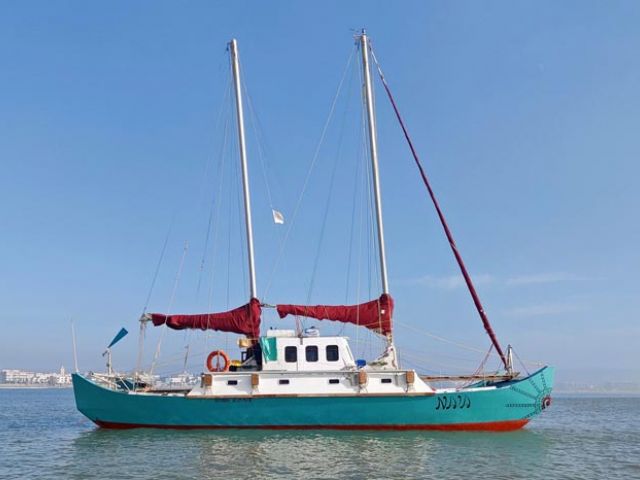

Wharram Pahi 42 built in 1992 (according to paperwork seems 1992 was start of build, launch was more like 1996)
Self-built in the UK, Leicestershire by Ian Parker.
It's' a two masted gaff with wharram wingsails instead of the regular bermudan rig that the plans suggest.

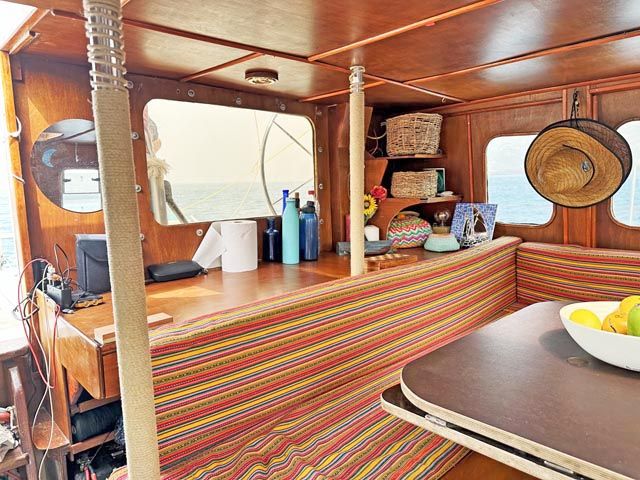

The large deckpod is also non-standard and was probably built by the second owner, Douglas Mitchell, as it does not seem to be part of the initial build.
It does maintain the designs flexibility as its not connected to the hulls, but sits in between the beams.
-
Hulls and decks +
The original builder has used high quality ply and softwood for the whole build, mostly douglas fir (available and affordable in the 90’s in the UK).

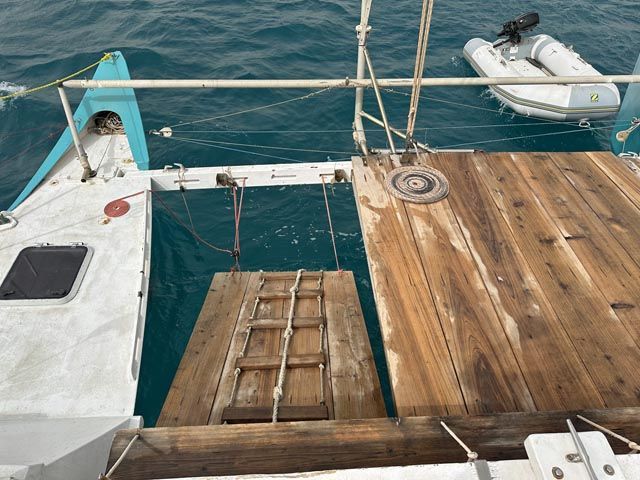

The decks are renewed and made of Japanese cedar planking from the Azores, very lightweight, weather resistant, beautiful and organic.
Instead of screws, lashed together, which gives it a more natural feel but solid attachment.
-
Rig and Rigging +
Two-masted gaff rig, aluminum masts and boom
Wooden gaffs, stainless steel stays & and turnbuckles
Aluminium spinnaker pole.
Running rigging all pre-stretched polyester braid of sizes ranging from 8mm to 12mm.
Nearly all connections and blocks are UK or scandinavian made.
-
Sails +
Main and mizzen are wharram wingsails, with booms of equal size, 3 reefs available each.
Rolling furling genoa
Storm jib
Spinnaker
Gennaker.
-
Engine +
Solé 26 mini diesel engine
25hp, built 2006, 700 engine hours.
60 liter tank + 80 liters in jerrycans.
100ah engine-dedicated heavy-duty lead acid battery.
Hooked up to Silette Sonic Catamaran Drive leg (Z-drive) which can be lifted out of the water.
-
Electrics/Navigation +
Nav lights, anchor lights and wind arrow on top of mast
Regular magnetic compass.
Fixed ICOM VHF with mast antenna.
Handheld waterproof ICOM
M94D VHF with AIS receiver, GPS, DSC and MOB function.
Anchoring ball, motoring cone
12v 200 watts of solar panels + 200watts of panels that can be installed.
12v 200ah lithium LifePO4 battery
2000watt 220v inverter
Lights in all hulls and deckpod and USB charging station.
-
Ground Tackle +
30kg galvanized delta-style anchor + 50m of 10mm chain (marked every 5m).
With electrical anchor winch.
16kg rocna-style anchor + 40m of nylon warp
Extra nylon warps for docking.
-
Safety +
New EPIRB with battery till oct 2033
5 auto-inflating adult lifejackets
3 regular child lifevests
2 lifelines with safety clips
VHF’s (described above)
Fire extinguishers
First aid kit
6 flares (parachute and handheld)
Lifering and horseshoe bouy + float lines and lifebouy lights.
Stanchions with dyneema lines + extra line on stays at chest height.
1100GPH emergency bilge pump in each hull.
Underwater epoxy stick and materials for emergencyrepairs.
-
Galley +

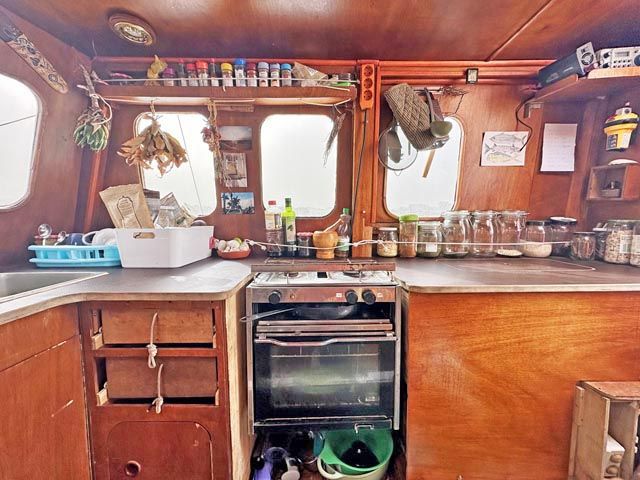

2-burner stove + oven with gimbal

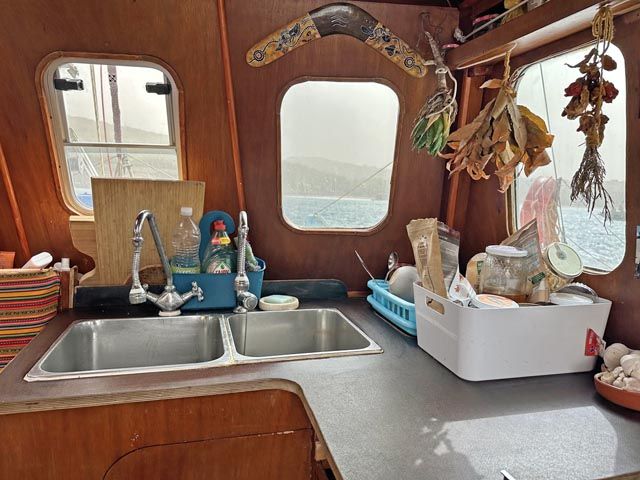

2 sinks with freshwater footpump
100L water tank.
Multiple drawers, cabinets and shelves for storage
All cooking utensils, pots and pans.
-
Heads +
Very simple gravity-fed deck shower
60L water tank
2 manual marine toilets, one in each hull.
-
Dinghy +
Zodiac 310 inflatable dinghy with inflatable
bottom.
6hp 4-stroke Mercury outboard.
-
Misc +
Little toolshed and all tools to make repairs or do creative projects, including various power tools.
5 fenders 2 buckets with rope for scooping saltwater, 2 other small buckets and 2 large buckets etc.
-
From the owner +
Built in the UK, second UK owners moved it to South Spain, where after some years they sold it to a Spanish Family
We are the 4th owners.
Recently sailed 5800NM (and counting) from Portugal, via Morocco, Canary islands and Cape Verde, to the Carribean.
Averaged 130NM+ per day on our crossing.
Especially good in surfing waves, reaching top speeds (bursts) of 12knots, while completely loaded.
Very stable and comfortable for its size.
The unusual two masted gaff setup and extra sails allows for a large variety of sail setups, and divides the sail area, making it easier and safer to manage, also giving you a backup in the worst case scenario.
-
More Details, Photos +
Photos coming but email Scott if you wish to meanwhile!
-
Boat details are supplied by the owners & cannot be guaranteed by SBM. You must verify those details personally, or employ a Marine Surveyor before purchase.
